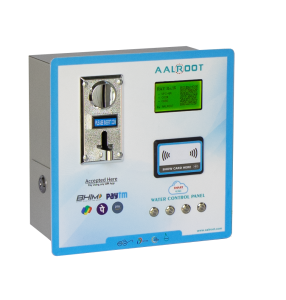

Water ATM CoinUPIeCard Control Panel

Highlights

Convenient Multi Payment Methods

  • Coin (Accept all denomination of coins)
  • QR UPI Payment (BHIM, Gpay, PhonePe, Paytm, Etc.)
  • Card (Online / Offline)
  • Note acceptor

Automatic Pump Control

  • Switch ON pump when water level is low
  • Switch OFF pump when water level is High
  • SMS alert to user when pump is ON and OFF

Smart Connectivity

  • Connect to server using WIFI / GSM
  • Store reports in machine when internet goes offline
  • Sync with offline report when resume internet

Easy Configuration

  • Configuration of price Online / Offline
  • Store online configuration in local for offline usage
  • Sync with online configuration when resume connections

Tank Low Level Alert

  • SMS alert to user when water level is low
  • Tank level measurement using waterproof sensor
  • Online monitoring of tank level in iOS / android app / website

Reports

  • Configure settings via iOS/android app
  • Monitor all status and reports via iOS / Android app
  • Get Daily/Weekly/Monthly/Yearly reports via Email

Specifications

Models WVC WVCQ WVCQS WVCQS
Payment Options Coin Coin + QR Coin + QR + Card[Offline] Coin + QR + Card[Online]
Input Voltage 1Ph 230V 50Hz 1Ph 230V 50Hz 1Ph 230V 50Hz 1Ph 230V 50Hz
Dimensions (LBH) 280 x 132 x 280 mm 280 x 132 x 280 mm 280 x 132 x 280 mm 280 x 132 x 280 mm
Mounting Cut-out 250 x 250 mm 250 x 250 mm 250 x 250 mm 250 x 250 mm
Output Connections Solenoid Valve & Water Pump Solenoid Valve & Water Pump Solenoid Valve & Water Pump Solenoid Valve & Water Pump
Selections(Optional) Hot/Cold/Normal Hot/Cold/Normal Hot/Cold/Normal Hot/Cold/Normal
Emergency Stop Switch Yes Yes Yes Yes
Weight in Kg (Approx.) 3.5 4 4.5 4.5
RFID Card Not Available Not Available Normal Card QR Card
